Marathon Non - Sparking Electric Motors


title icon

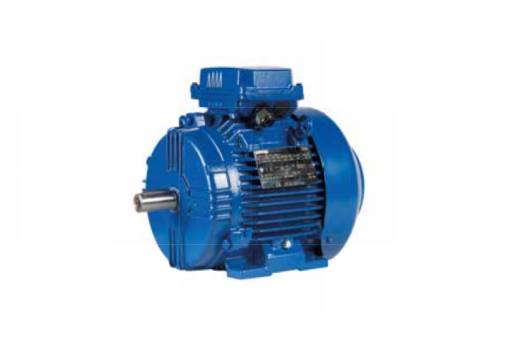

Non - Sparking Electric Motors

Marathon Motors unveils yet another futuristic low voltage motor platform to meet the demands of the industry to achieve the super high efficiency in the true sense of its words and at the same time presents a tough and versatile base platform to cater to the varying and ever-changing requirements of the myriad industry applications.

This new low voltage motor platform promises to meet the efficiency requirements as per IEC 60034-30:2008 when tested to the latest test standard IEC 60034-2-1:2007. The new motor platform, while delivering energy savings also endeavours to meet the rugged industry requirement in the face of tough and demanding applications. The motor platform also combines the ability to deliver many varied mechanical features which can be included as options based on the application requirements.

The investment in the manufacturing facility and processes allows the new motor platform to deliver the electrical and mechanical performance even more reliably, which is the hallmark of all Marathon motors. The Marathon global design team working across multiple continents has captured the requirements of our global customers to meet the application requirements across multiple regions of the IEC motor world, and respond back with this unique new motor platform—Marathon® TerraMAX® IEC Cast Iron motors.

title icon

Range

  • 2P -8P - 0.75KW – 375KW
  • 2P -8P - 80 TO 355 FRAME
  • Rated Voltage:-400 - 460 V
  • Frequency:-50 HZ / 60 HZ
  • Type:-TEFC SQUIRREL CAGE - –SELF COOLING (IC411), FORCED COOLING (IC416), NOT VENTILATED (IC410), TOTALLY ENCLOSED AIR OVER (IC418)
  • Gas Group:- IIB, IIC
  • Dust Group:- IIIB, IIIC
  • Temperature Classes:- T3
  • Max Surface Temperature (Dust):- T200 DEG. C
title icon

Applications

  • Hazardous Area
