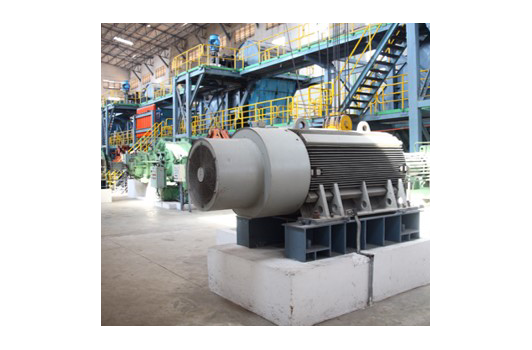

LV MOTORS 1LA8 N- COMPACT(IE3)

Higher output from the same frame size: this is the concept of the N Compact motors. The N-Compact series motors are offered from 250kW – 1250kW in 2, 4, 6 & 8 Pole for frames ranging from 355 – 500. The N-Compact series of motors can be offered up to 690 V supply. The motors are available in efficiency class IE2 and IE3 (IE4 On-request) as per latest IS 12615.

The N compact range motors are offered in 1LA8 - self cooled IC411 and in 1PQ8 - separately cooled IC416 versions suitable for converter duty applications for VFD Applications. The N compact series are offered for Altitude < 1000m, IP 55, with Class F insulation, Ambient of 45°C, IP55. These motors are provided with dual coat copper wires with VPI treatment which has superior electrical, mechanical and thermal properties.

Our N-Compact motors are widely used across Industry, such as Metal, Paper, Cement, Water and waste-water management, Sugar plants.

title icon

Range

  • FRAME - 355 FRAME TO 500 FRAME
  • 2 POLE – 355 KW TO 710 KW ( IE3)
  • 4 POLE – 355 KW TO 1250 KW(IE3)
  • 6 POLE – 315 KW TO 1000 KW(IE3)
  • 8 POLE – 250 KW TO 790 KW (IE3)
  • Rated Voltage:- 380 – 690V
  • Frequency:- 50 HZ. / 60 HZ.
  • Type:- TEFC SQUIRREL CAGE
title icon

Applications

Material Handling, Fans, Pumps, Machine Tools, Crusher, Compressor, Gear Drive, etc
