Garfil Transline

  • APPLICATION :-

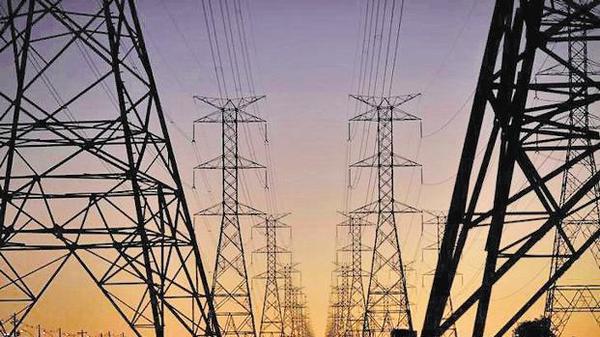

    • Power Transmission

  • FEATURES / BENEFITS :-

    • Higher strength to weight ratio
    • Increased safety factor
    • Adequate elongation for shock absorption
    • High abrasion resistance
    • Balanced rope geometry

  • Tolerance On Weight :-

  • 1) 16 mm & above = +/-10%


  • Description :-

  • Nominal dia. (mm) Std. Coil Wt. for
    220 mtr (Kgs)
    Breaking Strength (kgf) % higher strength for
    Transline ropes
    Transline Ropes Regular PP Ropes
    16 25.5 4320 3770 14.5
    18 32.5 5790 4810 14.1
    20 40 6840 5800 17.9
    22 48.5 8370 6960 20
    24 57 9450 8130 16

  • With ISI Mark :-

  • * the above specifications are indicative and are likely to change
